SO, If your prints are coming out smeared, fading, or just incomplete, the fuser film sleeve is more than likely bludgeoned. This job is not huge, but serves essential in getting the toner properly fused on the paper.
The good news is you don’t have to immediately call a technician. Replacing a fuser film sleeve is a kind of task someone can certainly take care of, with a bit of care as well as steps in repositioning them.
Well, here is a simple easy-to-understand step by step guide to do this.
What You’ll Need
So, before you start, have the following:
1. Replaceable fuser film sleeve assembly compatible
2. A screwdriver (usually Phillips)
3. Heat-resistant gloves (optional, but helpful)
4. A clear, flat surface to lay your work on
5. NOTE:Thermal grease (required for some models)
Step-by-Step Instructions
Step 1: Power down and allow cooling
Power your printer off then unplug it. Try 15–20 minutes break to cool down if you have just used it — this fuser part is hot.
Step 2: Find the Fuser Unit
Expose your printer and find the fuser unit there. That is often buried in the rear or behind a curtain. If you don’t know, your printer manual should guide you.
Step 3: Take Out the Fuser
Now unscrew the fuser unit and remove it. Get a quick snap if you’re worried about how it all goes back together, believe us, it helps.
Step 4: Open It Up
Open the fuser unit cautiously so you can get at the rollers. You will see a heating roller or region with ceramic heating element in accordance with your printer, with a film sleeve situated around it.
Step 5: Remove the Old Sleeve
Slide off the old sleeve. If it won’t budge do not use force, just give it a gentle twist to work it off slowly.
Step 6: Clean and Prep
This means that you should first clean the metal/ceramic roller over the top. If your model uses thermal grease, apply a thin, even layer—it facilitates heat transfer and holds the new sleeve in place.
Step 7: Install the New Sleeve
Slip the new sleeve on carefully. You want it to be straight, and slide smoothly.
Step 8: Reassemble Everything
Reassemble the fuser unit, insert it back into the printer and screw it into place.
Step 9: Power On and Test
Reconnect your printer, power it on, and try printing a couple of test pages. Everything should be looking spick-and-span, nice and smooth.
A Few Quick Tips
1. Don’t touch the new sleeve with greasy fly-specked hands.
2. If the old thermal grease appears crusty or dry — no reusing — fresh is always the better option.
3. If this is your first time, find a video for your printer model. It can simplify a lot of things.

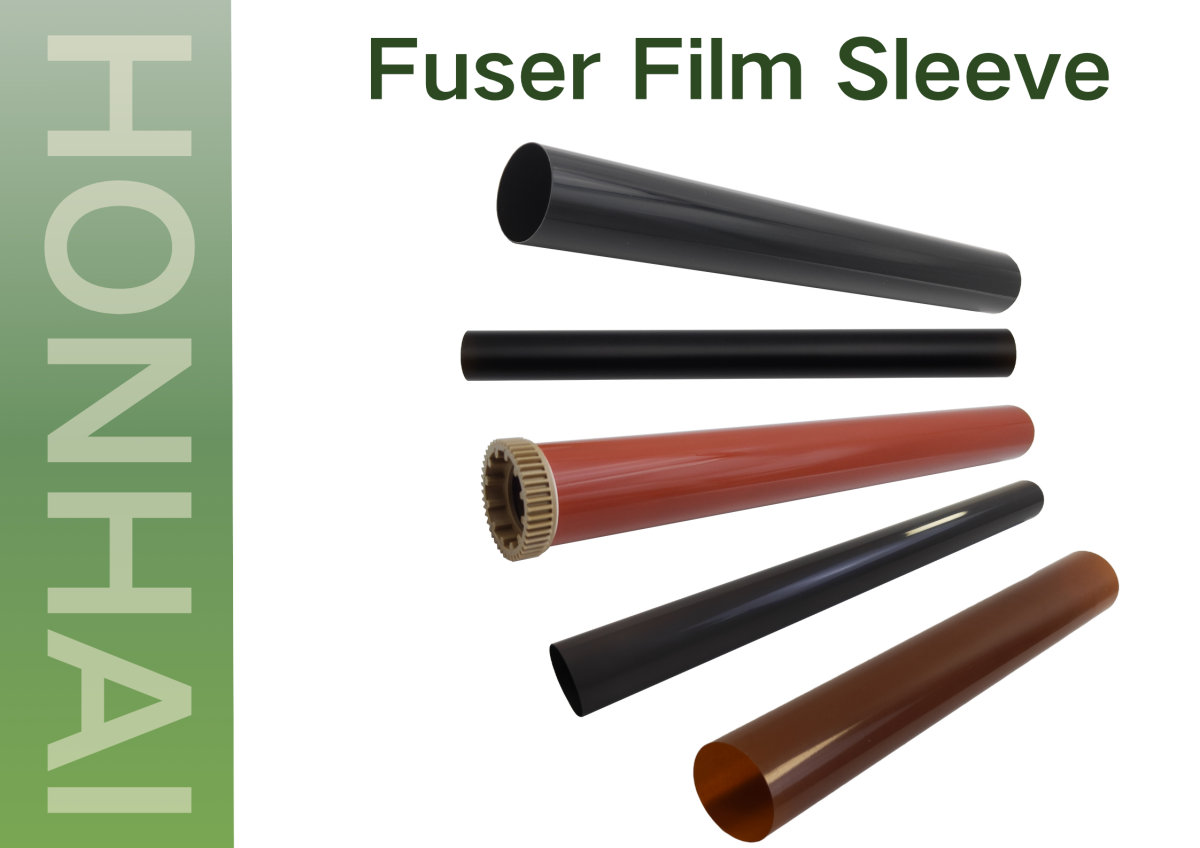

Honhai Technology has been in the printer parts game for 17 years, and we’ve got fuser film sleeves for a wide range of models—tested, reliable. Including the Fuser Film Sleeve for HP M501 M506 M527 M521, OEM Fuser Film Sleeve for HP M601dn 602n M604n, Fuser Film Sleeve Original New for HP 5225 CP5525 CP5225, Fuser Film Sleeve for Canon IR 2535 2545 FM3-9303, Fuser Film Sleeve for Canon IR4570, Fuser Film Sleeve for Canon IR 4245 4025 4035,Fuser Film Sleeve Japan material for Ricoh MPC2011 MPC3003 MPC2003, Fuser Film Sleeve for Ricoh MPC2004 3503 4503, Fuser Film Sleeve for Ricoh Mpc2051 2551, Fuser Fixing Film for Kyocera Ecosys P2235 P2335 P2040, Fuser Film Sleeve for Kyocera TASKalfa 3050ci 3051ci 3550ci 3551ci, Fuser Film Sleeve for Kyocera 2040 2035 and etc. If you’re not sure which one fits your machine, just ask to contact our sales team at
